ML-1

All-inclusive magnetic locator with simple, one-handed operation.

ML-1

All-inclusive magnetic locator with simple, one-handed operation.

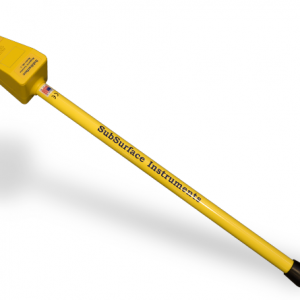

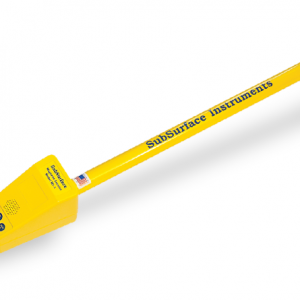

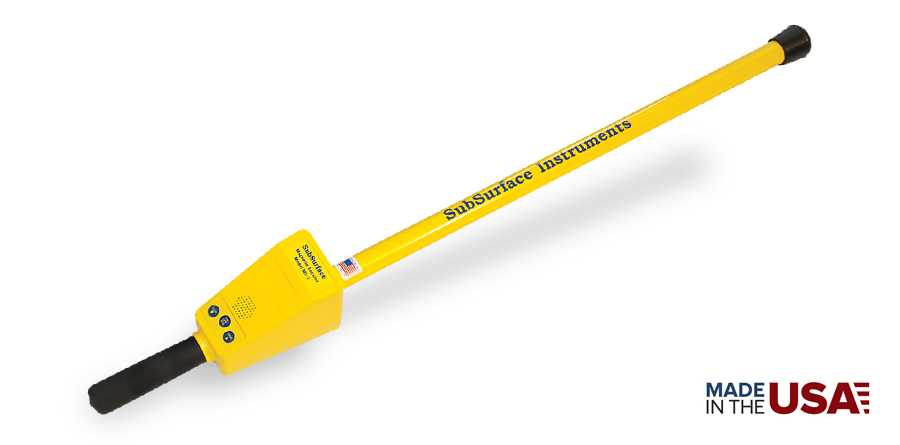

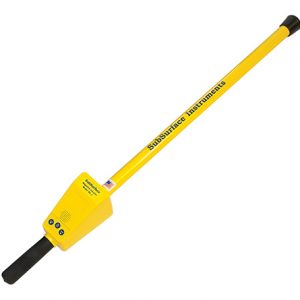

The ML-1 is one of SSI’s longest-enduring and popular products for magnetic detection. Whether you’re seeking corner markers (iron or steel), well casings, steel drums or septic tank handles, this is the go-to magnetic locator for you. And for good reason. The ML series offers simple one-handed operation with an easy-to-learn keypad featuring only three buttons – no menus or cumbersome instructions to follow. The audio unit has the volume built into the on/off key; just hold down the key while it cycles through the settings. The ML-1 features strong monotube construction, providing structural integrity you can count on.

Detecting Next to a Chain Link Fence

Key Features

  • Easy and simple one-hand operation; built-in handle

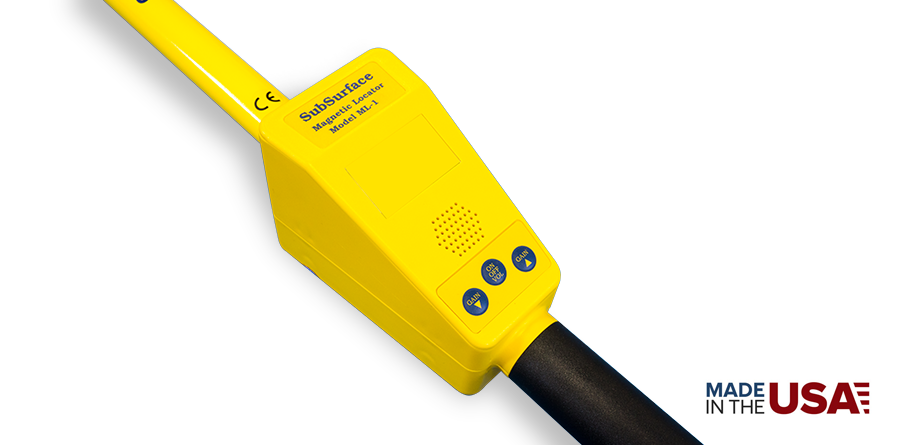

  • Easy to learn; 3 keypad switches: on/off and volume, sensitivity up and sensitivity down
  • Volume built into the on/off key; just hold down the key while it cycles through the settings

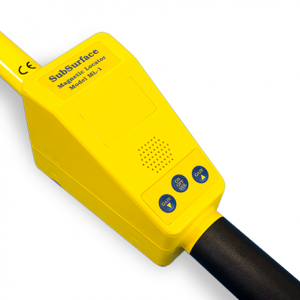

  • The electronic keypad “clicks” when a key is depressed. A “real” speaker is in the front panel, providing outstanding volume.
  • Microprocessor remembers the volume and gain settings from the last time the unit was on Non-metered (ML-1) and metered (ML-1M) versions are designed to look, feel and operate the same

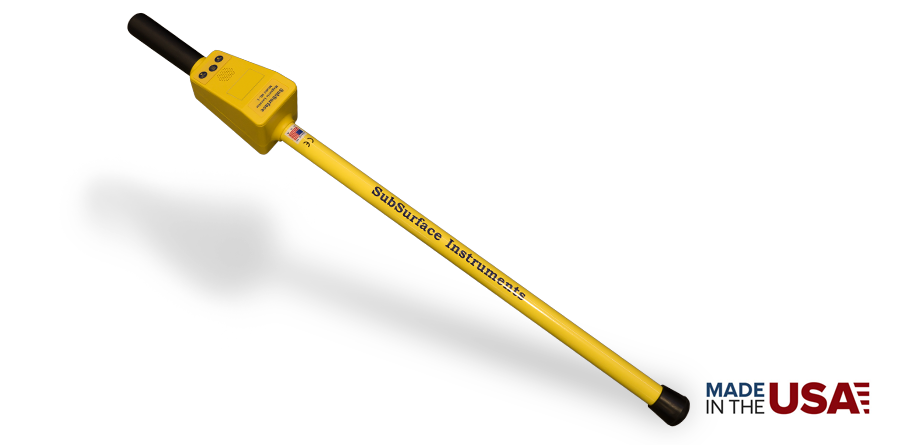

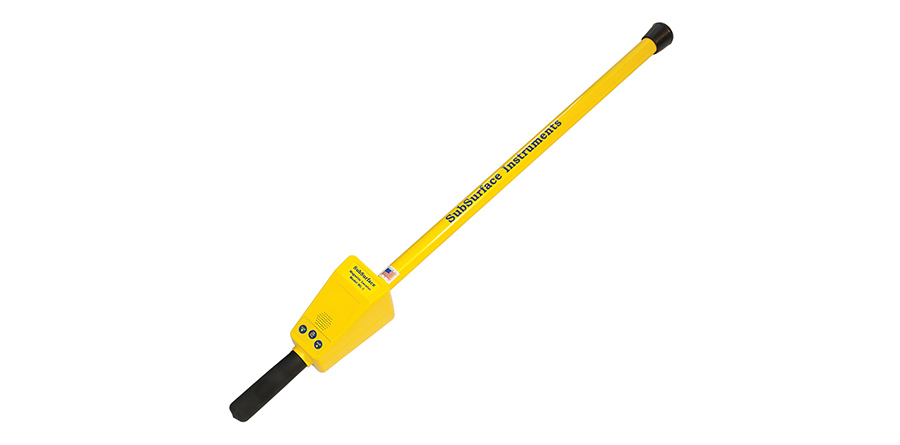

  • Strong aluminum monotube construction from the tip through the end of the handle and ABS injection-molded electronics case (3 ¼” tapered to 2 ½”-wide X 4 ½” tapered to 2 ½”-deep) provide the best structural integrity in a hand-held locator.
  • Lightweight; only about two pounds including batteries

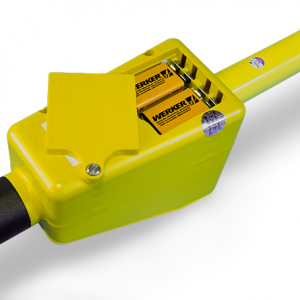

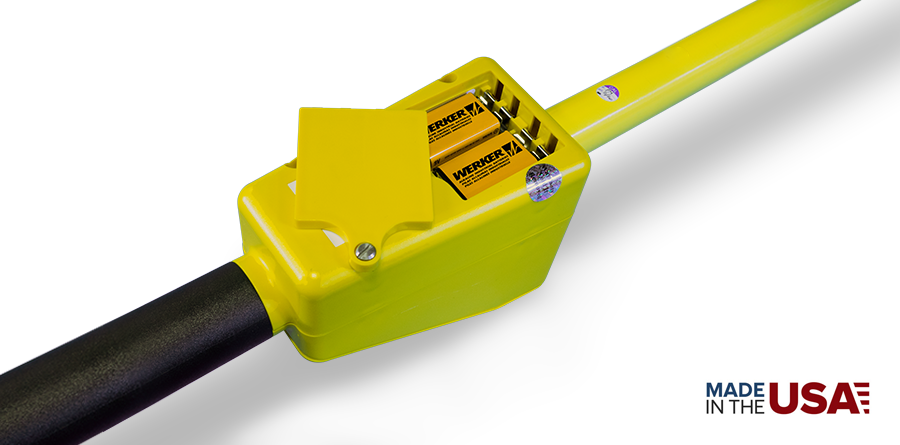

  • Uses 2 regular alkaline 9-volt batteries, parallel; the unit is shipped with two spare batteries

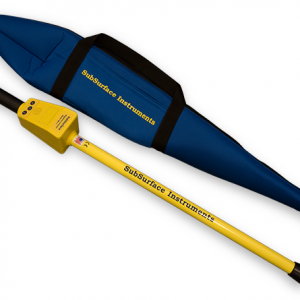

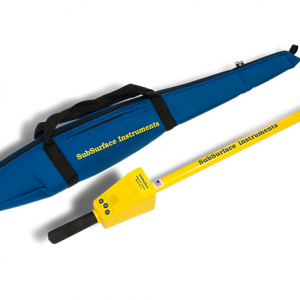

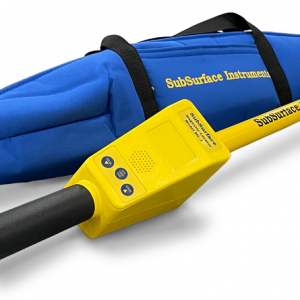

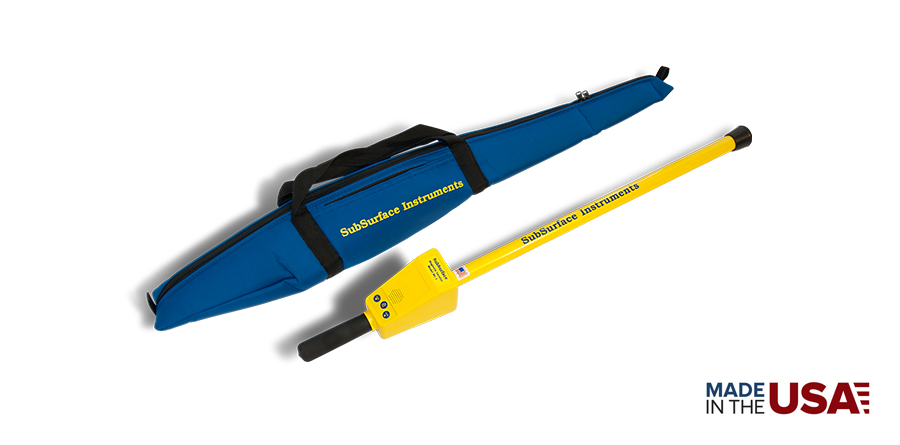

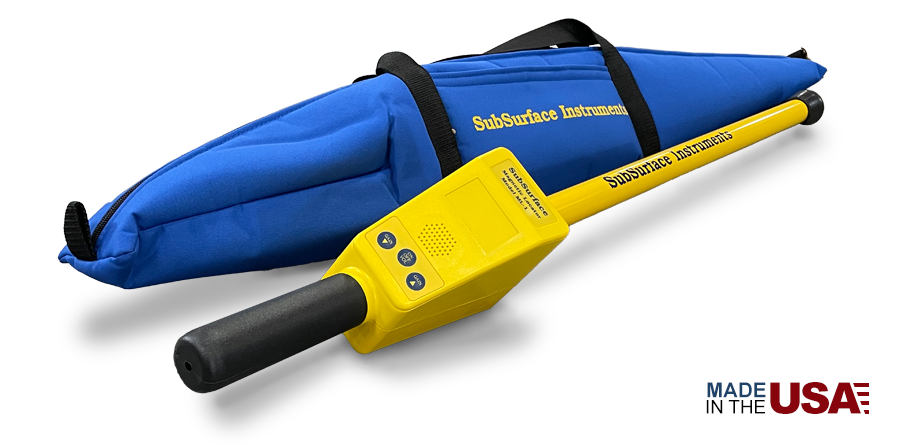

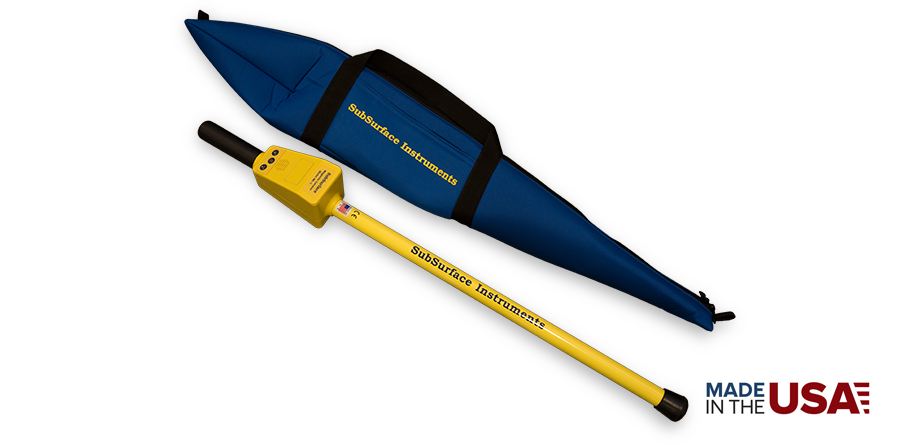

  • Soft pack carrying case included (optional hard case available) Battery compartment separated from electronic components and the circuit board. No exposing electronics to replace the batteries.

TECHNICAL SPECIFICATIONS

Additional information

Overall Length

38.75 in (98.4 cm)

Weight

2.0 lbs (0.9 kg) including batteries

Input Power

Two (2) standard 9-volt alkaline batteries

Battery Life

40 hours minimum

Warranty

7 years
