IC-38

Lightweight, high-quality video, Pipe Inspection Camera System

Description

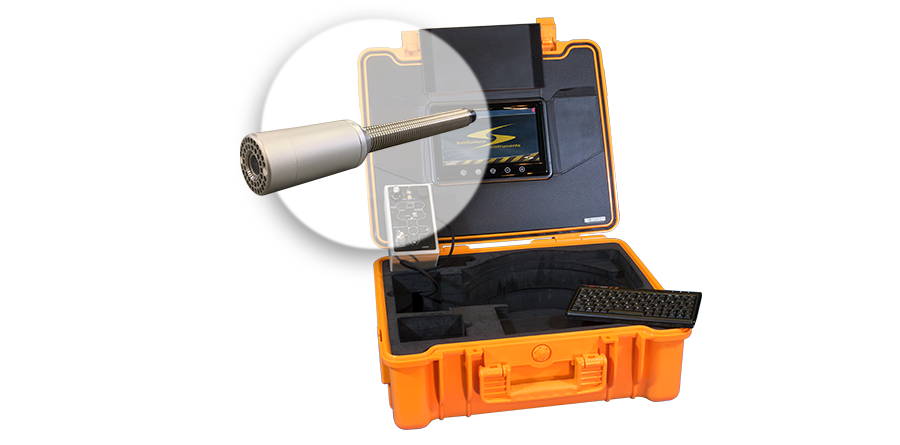

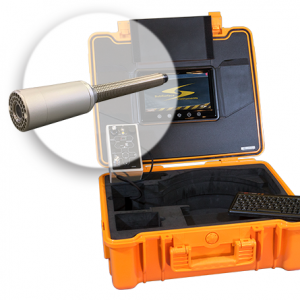

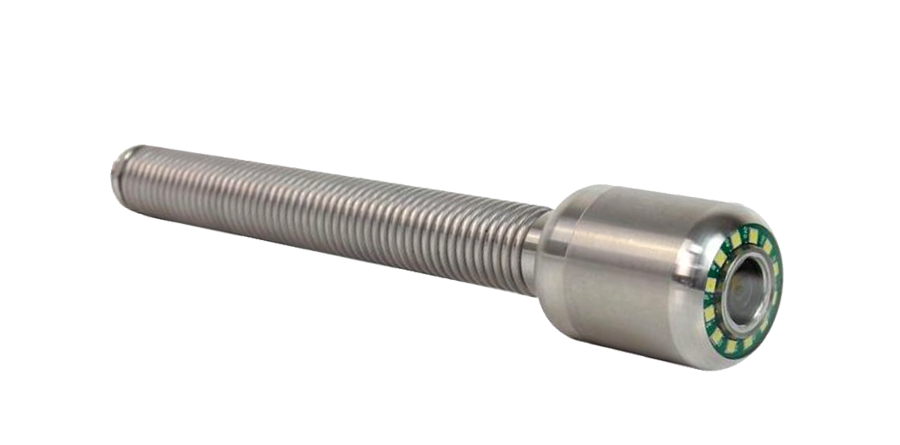

The IC-38 Pipe Inspection Camera System features a 38 mm camera, mounted on a rugged stainless steel IP68 certified enclosure that is equipped with a 512 Hz sonde giving the user the capability of finding the location of the camera with a Pipe and Cable Locator (not included).

The 12-piece LEDs mounted on the front of the camera provide superior illumination for inspection, or for creating the perfect conditions to snap a photo or create a video to show the results to your clients.

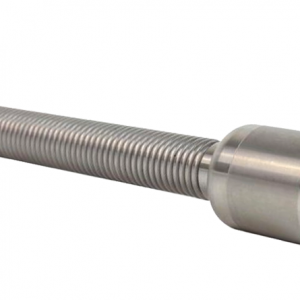

Designed to follow the corners of pipes and conduits, the IC-38 enclosure has a coil that bends accordingly, giving it the flexibility to move smoothly inside the pipe.

Install the skid on the head of the camera to improve visibility and protect the camera from sharp corners and other objects inside of the pipes you are inspecting. Install the universal skid for wider pipes and conduits.

Save time and money by inspecting your projects before starting the excavation process, eliminating costly damages, and finding the problem’s location easily and accurately.

Key Features

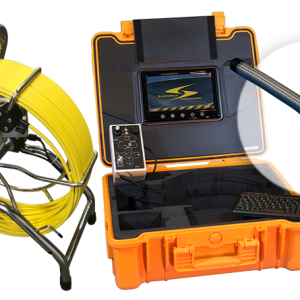

  • Comes standard with a 60m length, 9mm diameter reel
  • 9″ monitor (image reversible)
  • 38mm camera
  • Self-leveling camera
  • 12 LED light
  • Picture snap & movie record
  • Rechargeable Li-ion Battery
  • Customizable User Preferences
  • SD card port
  • ø75mm, ø100mm, ø150mm, ø220mm skids
  • HD resolution
  • Battery level display
  • Lightweight reel

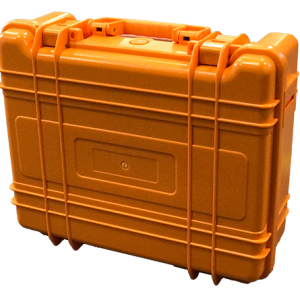

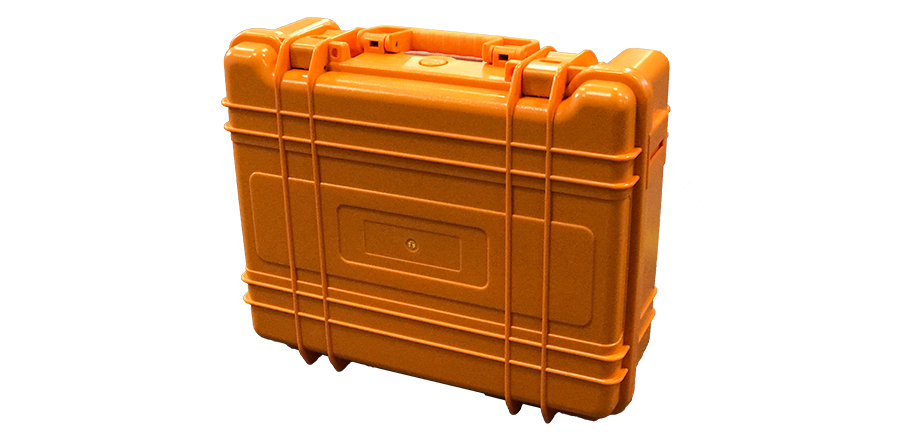

  • Carrying Case

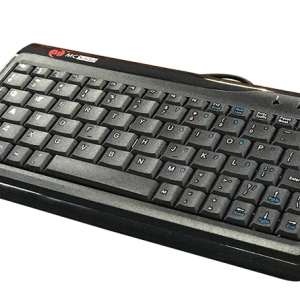

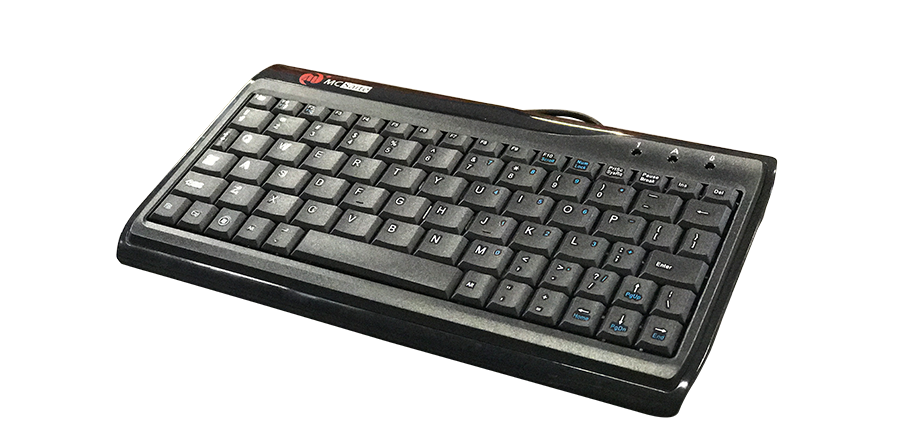

  • Standard US Keyboard
  • 1-Year Limited Warranty

Additional information

Camera Head Camera Size

Ø38mm

Camera Head Camera Type

Self-leveling camera

Camera Head Sensor Size

1/4 inch

Camera Head View Angle

90°

Camera Head Work Current/Power

DC12V

Camera Head Camera Light

12 PCS white LEDS

Camera Head Resolution

PAL: 720 X 576
NTSC: 720 X 480

Camera Head Glass Material

Sapphire glass

Camera Head Shell Material

Stainless steel

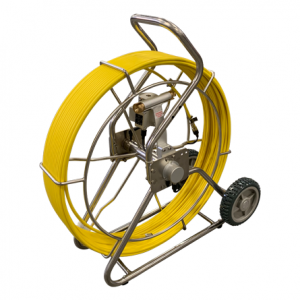

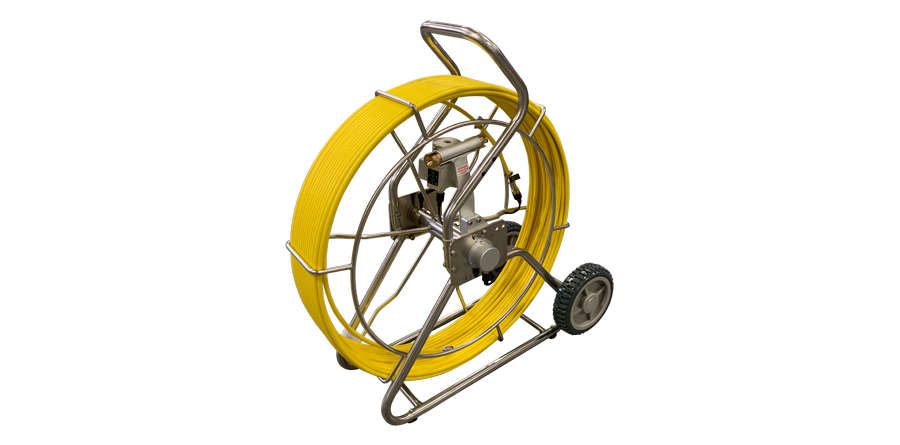

Cable Wheel Cable Size

520L x 320W x 710H

Cable Wheel Wire Material

Fiberglass rod

Cable Wheel Wire Length Options

60 meters

Cable Wheel Wire Diameter

Ø9.0mm

Monitor Size

9 inch digital color

Monitor Total Pixels

1440 X 234

Monitor Work Current/Supply

DC12V

Monitor OSD Language

English

Monitor Ratio

16:9 and 4:3

Lithium-Ion Battery Total Power

14W

Lithium-Ion Battery Charge Time

5 hours

Lithium-Ion Battery Protective Voltage

8.1V

Lithium-Ion Battery Work TIme

≥ 260 minutes

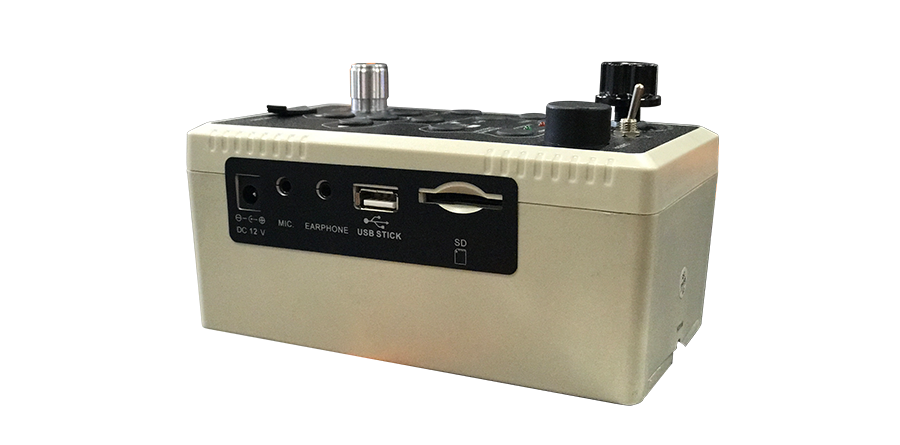

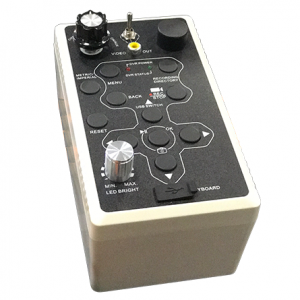

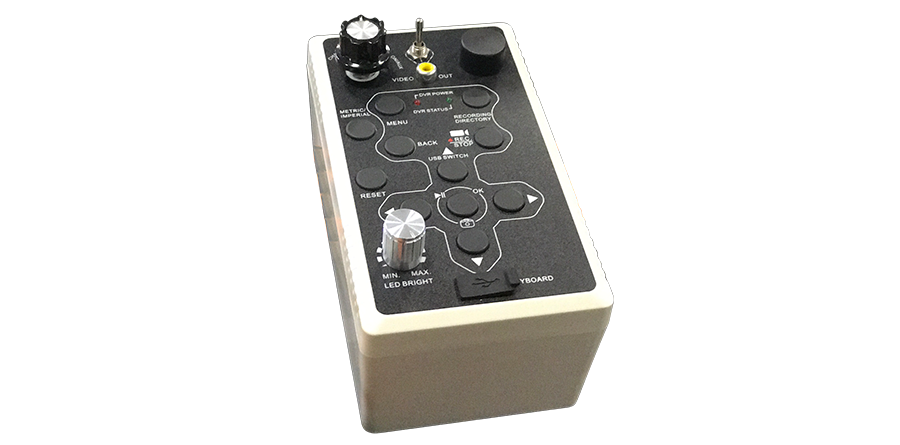

Control Box Power Supply

12V

Control Box Work Current

200MA

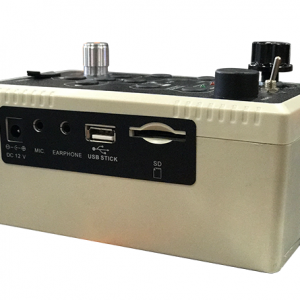

Control Box Storage Medium

8G SD card (max 32G) / SD card reader

Control Box DVR Total Pixels

720 X 576 (D1)

Control Box Movie Format

AVI

Skid

Ø75mm, Ø100mm, Ø150mm, Ø220mm

Charger Input

AC100-240V – 50/60Hz

Charger Output

DC 12V/1000MA

Charger DC Plug Diameter

2.1mm

Keyboard Size

220(L) X 118(W) X 18(H)mm

Suitcase Size

460(L) X 370(W) X 180(H)mm

Suitcase Material

Engineering plastics
