WIC

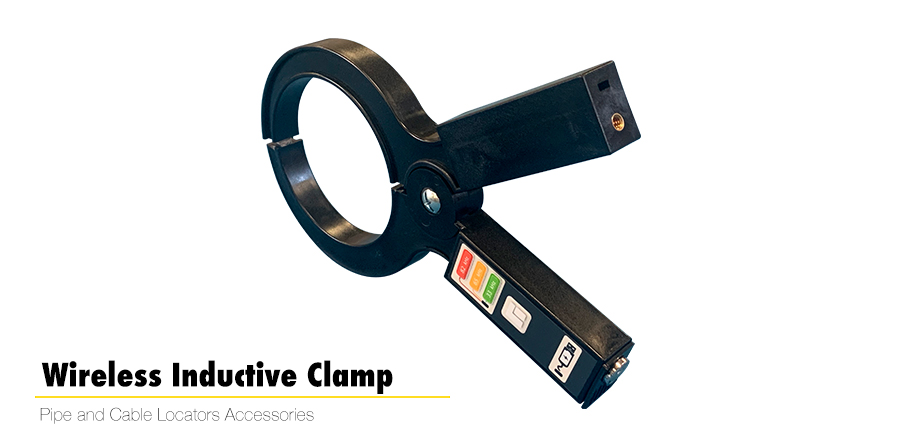

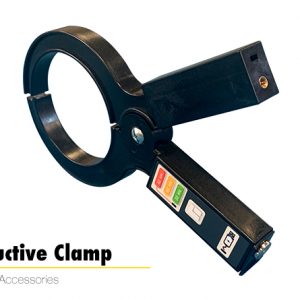

The Wireless Inductive Clamp is a self-contained, stand-alone, transmitting inductive coupler.

Description

The Wireless Inductive Clamp is used to induce a tracing signal on a target conductor when direct connection is not possible, and/or when services cannot be interrupted.

Induction coupling may be better than a direct connection at applying a selective signal to a target conductor with less inadvertent coupling to adjacent lines. It is common for the target conductor to carry the strongest signal and non-target lines will carry a weaker signal.

Successful coupler operation requires an insulated conductor that is grounded on both near and far ends. It is best to leave the system grounds intact or ground the line if possible when coupling signal.

The Wireless Inductive Clamp is a self-contained, stand-alone, transmitting inductive coupler.

It is engineered with 3 highly capable frequencies: 33Khz, 65Khz, and 82Khz. These frequencies are commonly available on most locators from a wide range of manufacturers. You don’t have to match your output jack to use with a different brand of locator.

This unit is 0.8 pounds and ready for action on its 3 available inductive frequencies. There is no need to worry about hauling that heavy transmitter to the field.

Adjustable power settings allow for just the right amount of signal to be applied. For short runs in congested areas the low power can prevent bleed over. The high power setting will light up the most stubborn and resistive circuits.

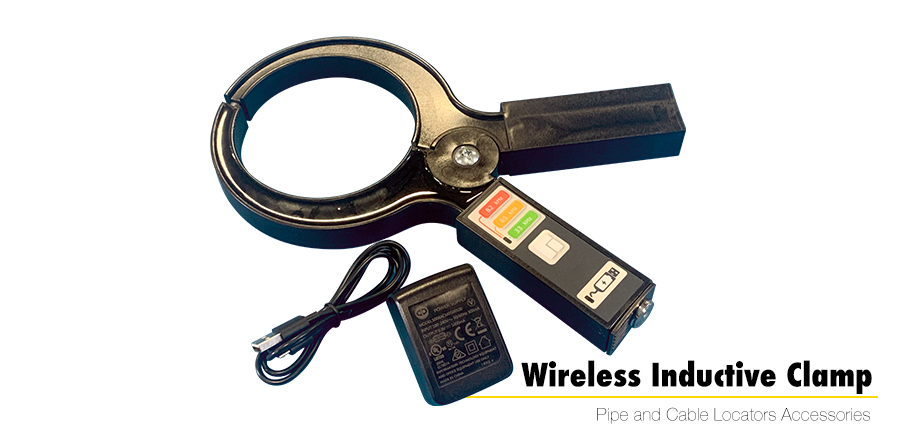

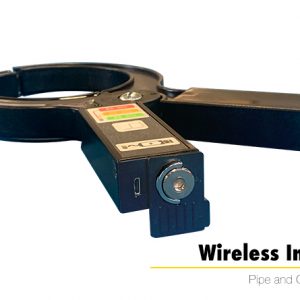

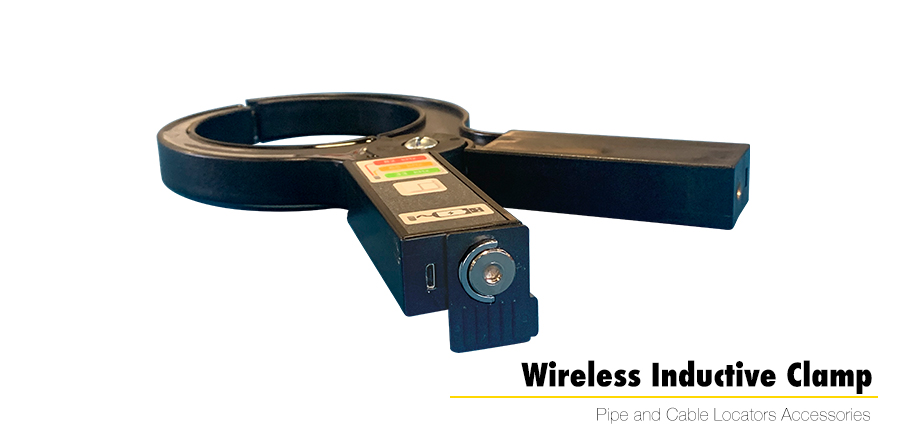

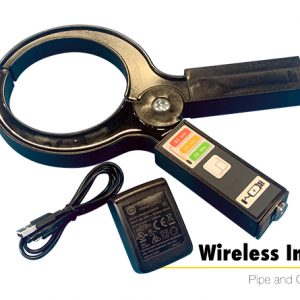

The Wireless Clamp can be charged with a simple, standard USB cord (16 hours of continuous use on a full charge).

D-ring and 1/4 inch threaded insert for the fitting of hot-stick and lanyard.

Key Features

  • 3 frequencies 33Khz, 65Khz, and 82Khz
  • Wireless Induction
  • Lithium battery operated
  • 16 hours of battery use
  • High and low power output

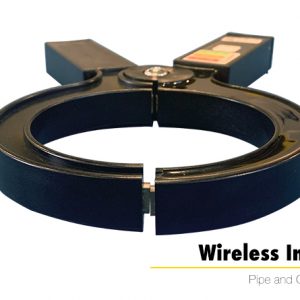

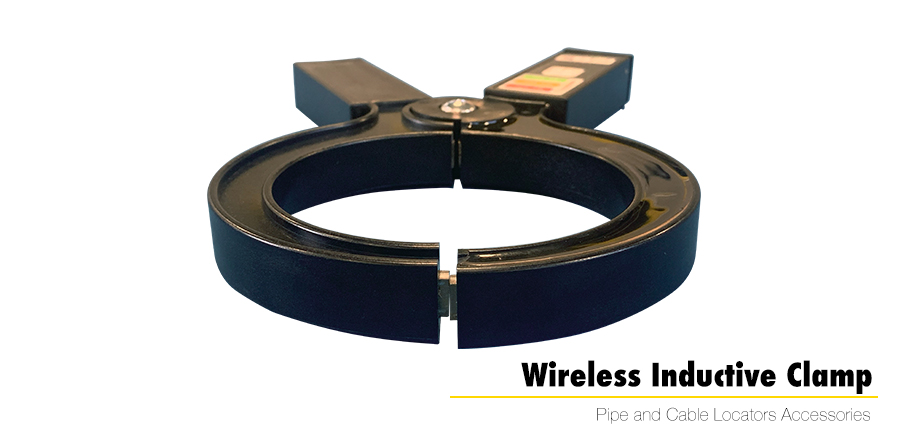

  • 4.2″ inside diameter
  • Connects to most locator brands

Additional information

Transmitter Available Operating Frequencies

33kHz (32,768Hz), 65kHz (65,536Hz) & 82kHz (82,315Hz)

Transmitter Indicators

LED lights

Transmitter Output Power Levels

Low Power / High Power

Transmitter Power Source

Rechargeable Li-Ion Battery

Transmitter Charging

Standard USB supply

Transmitter Battery Life

16 Hours (continuous use)

Transmitter Operating Temperature

-4° F to 140° F (-20° C to 60° C)

Transmitter Ingress Protection Rating

IP65

Transmitter Inside Diameter

4.2 inches (10.67 cm)

Transmitter Dimensions

5.6” x 10.8” x 1.0” (14.2cm x 27.4cm x 2.4cm)

Transmitter Weight

0.8 lbs (0.362kg)

Transmitter Country of Origin

United States of America

Transmitter Warranty

1 Year warranty. 48 Month (4 Years) Warranty when registered at http://www.ssilocators.com/warranty-registration within 1 month of the date of purchase.
