IC-12
Lightweight, high-quality video, Pipe Inspection Camera System
Enigma® pinpoints leaks others miss—smart, powerful, and built to listen where it matters most.
Enigma® is an advanced digital correlation logger designed to accurately locate leaks in buried water pipes. By combining noise logging and noise correlation in a single operation, it streamlines the leak detection process and boosts operational efficiency. Ideal for both temporary and semi-permanent deployments, this “Lift and Shift” solution is a versatile tool for water network surveys. Enigma® features powerful 24-bit data processing and analysis, giving it a proven edge in detecting difficult leaks that other systems often miss. Its ability to take and analyze three distinct sound samples allows it to differentiate between regular consumer usage and non-revenue water loss, delivering highly reliable leak detection results.
Trouble free deployment
Enigma correlating leak noise loggers are deployed at multiple positions, typically on valves or hydrants, during normal working hours. They may be programmed for either daytime or night-time operation.
MULTI-POINT NETWORK CORRELATION
Enigma® loggers are deployed at multiple positions, typically on valves or hydrants, during normal working hours. They maybe programmed for either daytime or night-time operation. The loggers record the actual leak sound. When retrieved the leak sound is transferred to the host software where it is processed to display all leak positions between loggers. Programming and data readback utilises optical and USB communications to ensure rapid operation.
OPTIMUM LEAK SENSING
Overnight use provides ideal conditions for leak detection. This is because background acoustic noise from traffic, water usage and other sources, is lowest and, at the same time, water system pressure can be higher which greatly aids leak sound propagation.
TECHNICAL SPECIFICATIONS
Additional information

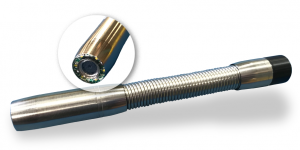

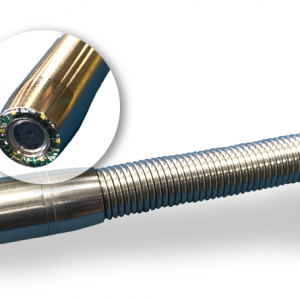

| Camera Head Camera Size | Ø12mm X 115mm |
|---|---|
| Camera Head Sensor Size | 1/4 inch |
| Camera Head View Angle | 65° |
| Camera Head Work Current/Power | DC12V |
| Camera Head Camera Light | 6PCS white LEDS |
| Camera Head Resolution | PAL: 720 X 576 |
| Camera Head Glass Material | Sapphire glass |
| Camera Head Shell Material | Stainless steel |

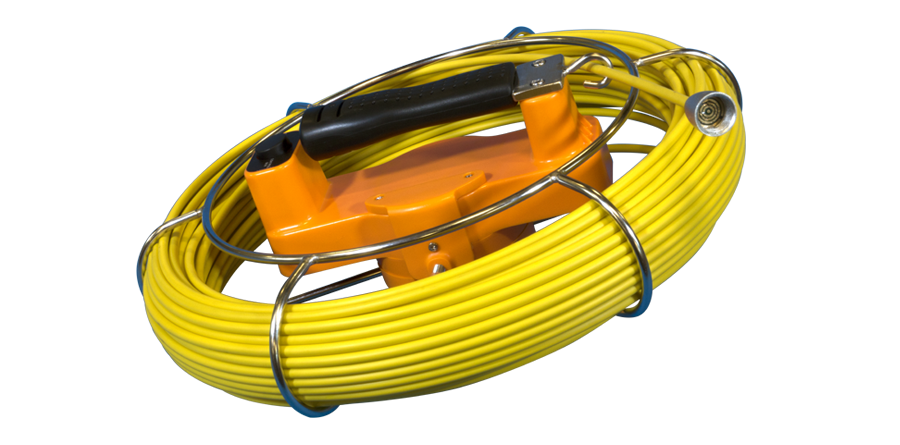

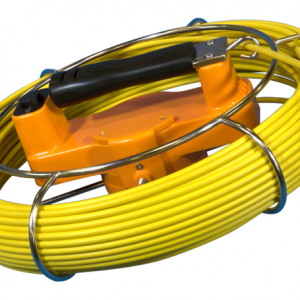

| Cable Wheel Cable Size | Ø330mm X 110(h) |
| Cable Wheel Wire Material | Fiberglass rod |
| Cable Wheel Wire Length | 40 meters |
| Cable Wheel Wire Diameter | Ø5.0mm |
| Monitor Size | 9 inch digital color |
| Monitor Total Pixels | 800 X 480 |
| Monitor Work Current/Supply | DC12V |
| Monitor OSD Language | English |
| Monitor Ratio | 16:9 and 4:3 |
| Lithium-Ion Battery Total Power | 4400MAH |
| Lithium-Ion Battery Charge Time | 5 hours |
| Lithium-Ion Battery Protective Voltage | 12.6V |
| Lithium-Ion Battery Work TIme | ≥ 420 minutes |

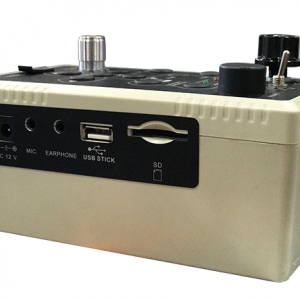

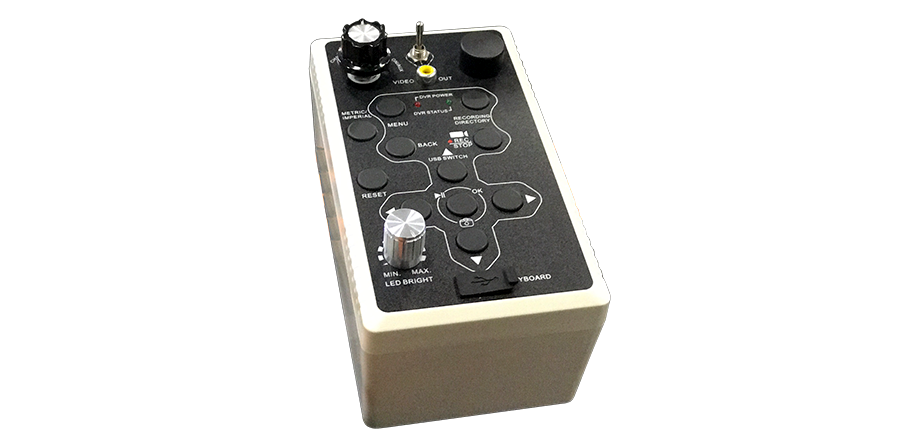

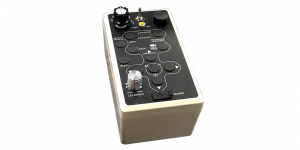

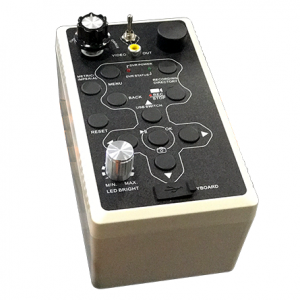

| Control Box Power Supply | 12V |
| Control Box Work Current | 150MA |
| Control Box Storage Medium | 8G SD card (max 256G) / SD card reader |
| Control Box DVR Total Pixels | 720 X 576 (D1) |
| Control Box Movie Format | mp4 |
| Skid | Ø18mm |
| Charger Input | AC100-240V – 50/60Hz |
| Charger Output | DC 12V/1000MA |
| Charger DC Plug Diameter | 2.1mm |

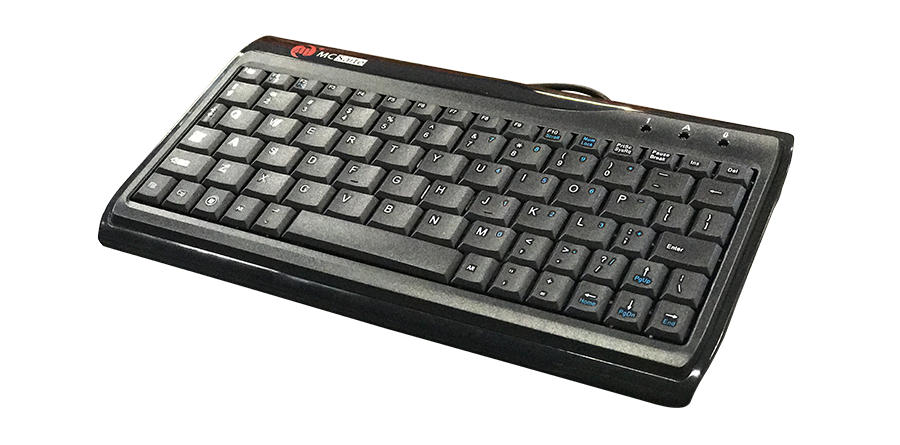

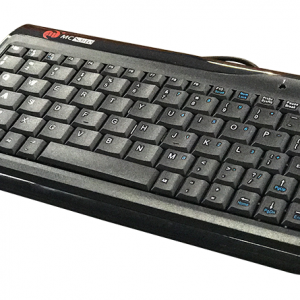

| Keyboard Size | 220(L) X 118(W) X 18(H)mm |

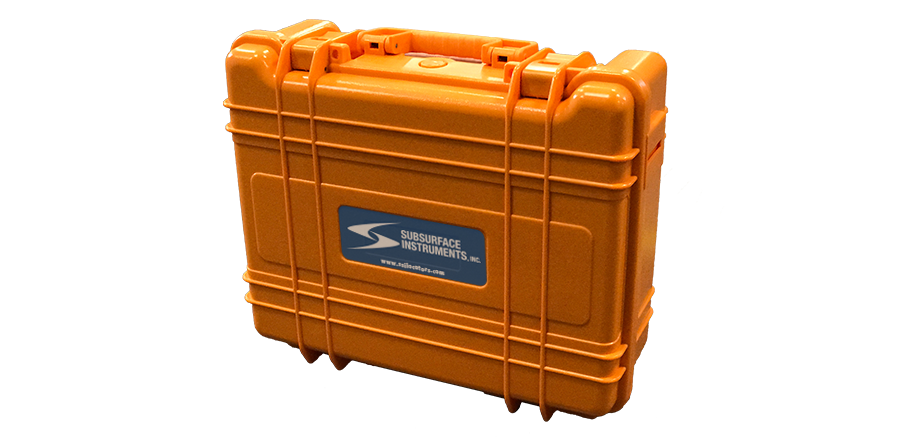

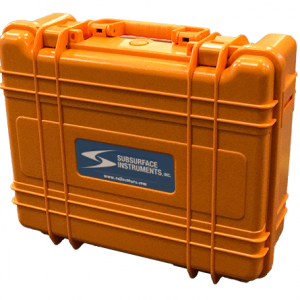

| Suitcase Size | 520(L) X 435(W) X 200(H)mm |
| Suitcase Material | Engineering plastics |
