PL-3000

The PL-3000 is a user-friendly and versatile tool designed for quick learning and reliable results, whether used by experienced technicians or first-time operators. Built for precision in locating buried pipes and cables, it simplifies detection work through three distinct indicators: vibration, LED light, and audible buzzer. These multiple alerts ensure clearer, safer, and more efficient operation in the field.

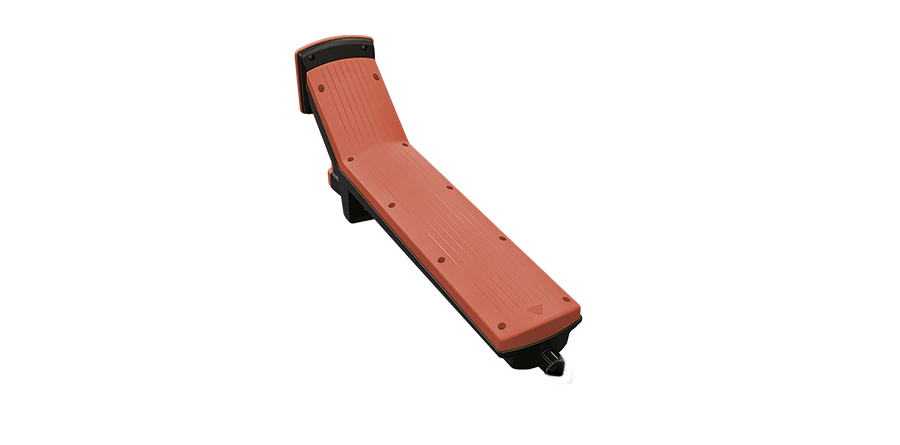

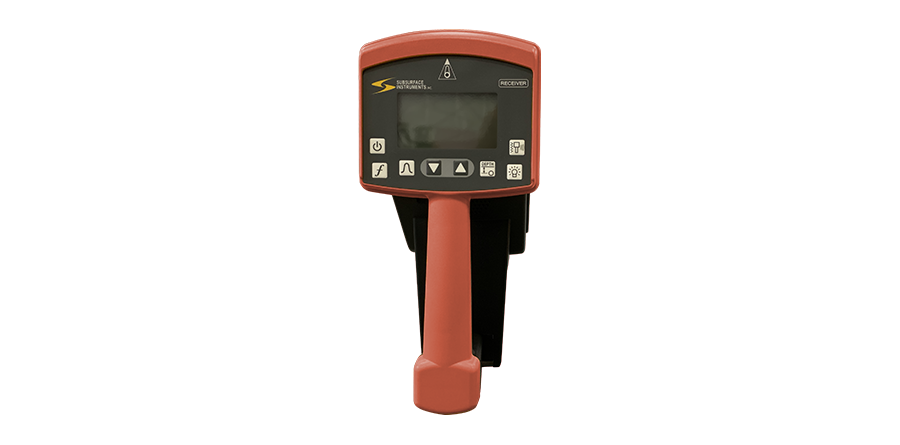

With its large LCD screen and intuitive key panel, the PL-3000 provides a visual operating guide that helps users select the correct mode without confusion. Operators can easily locate metallic pipes and cables while also measuring depth with a simple push-button function. Weighing only 1.8 kg, the receiver is lightweight enough to minimize fatigue during long hours of surveying.

For added versatility, the PL-3000 features both 8 kHz and 27 kHz frequencies, allowing operators to choose the ideal frequency for each work environment. The dedicated live cable detection mode (AC/CP mode) further enhances safety by enabling quick identification of buried electric cables. A self-stand attachment is also included, ensuring convenient use in the field.

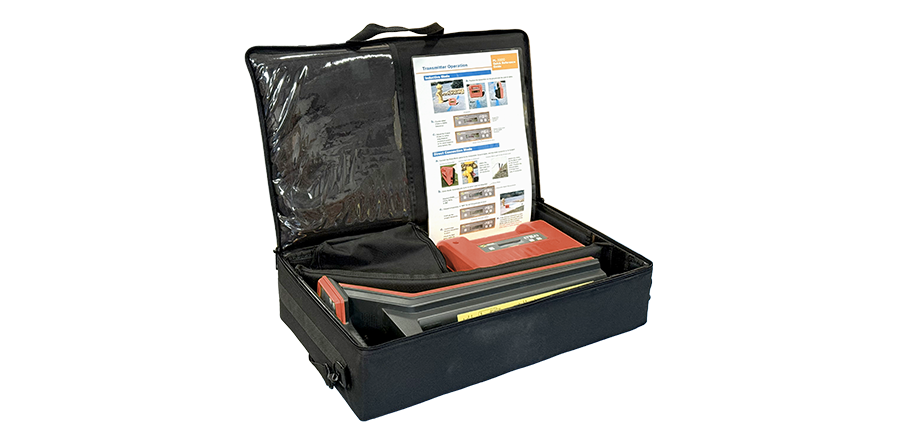

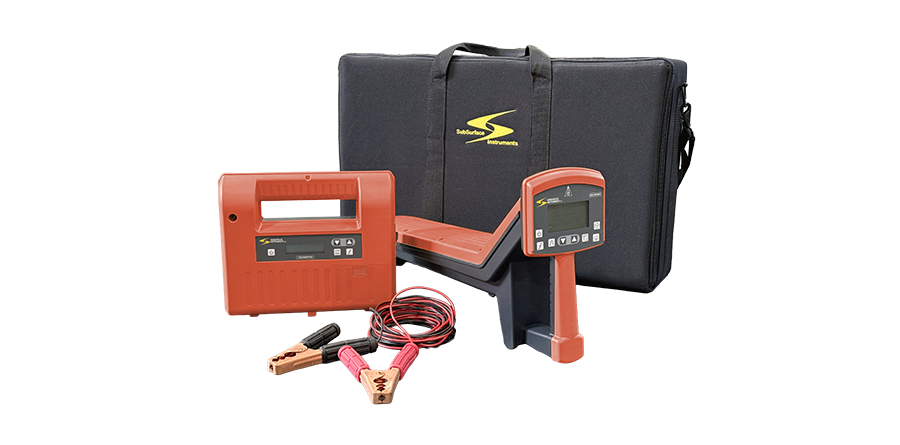

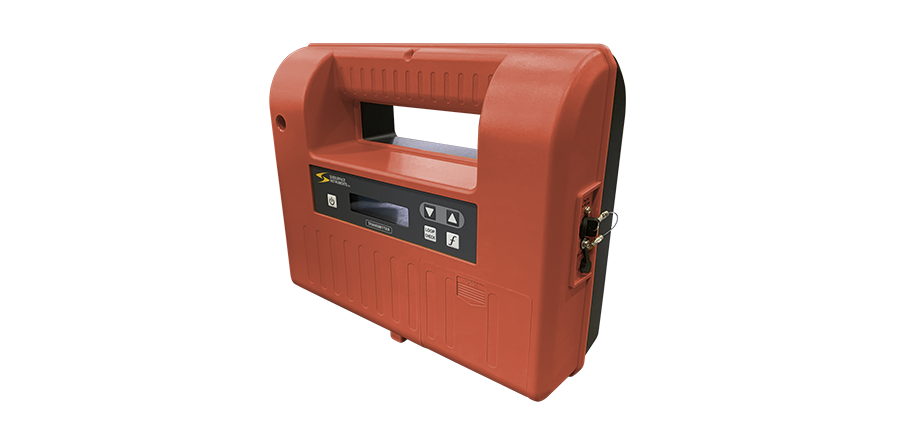

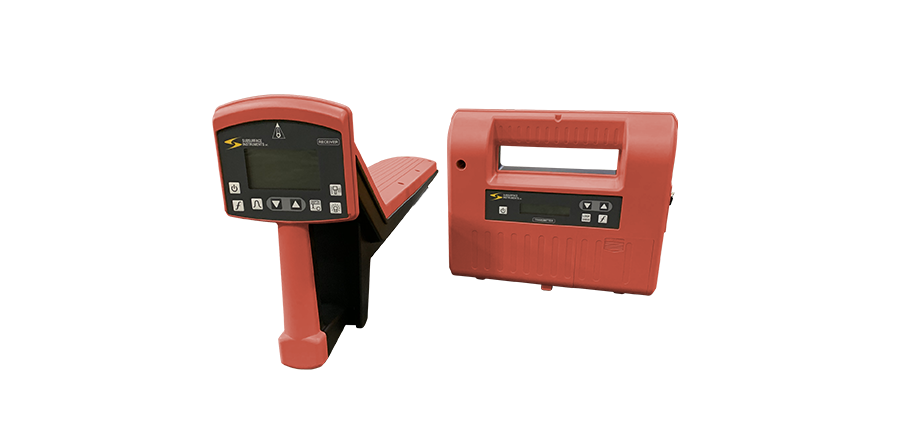

Every PL-3000 comes standard with a transmitter, receiver, ground stake, warning flag, direct mode cable, receiver stand, and soft carrying case. Optional accessories expand its capability even further, including external induction coils and poles, power supply cables, a 50-meter loop cable drum, small and large sondes, and headphones.

Engineered for accuracy, the PL-3000 delivers dependable depth measurements: within ±4% for targets under 2 meters, and within ±10% for depths greater than 2 meters. This combination of precision, portability, and ease of use makes the PL-3000 an essential tool for professionals seeking dependable underground pipe and cable location.
