IC-38
Lightweight, high-quality video, Pipe Inspection Camera System
TECHNICAL SPECIFICATIONS
Additional information

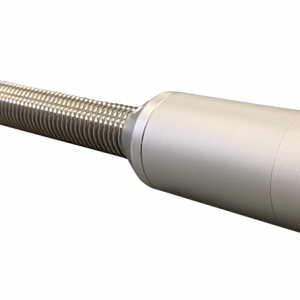

| Camera Head Camera Size | Ø38mm |
|---|---|
| Camera Head Camera Type | Self-leveling camera |
| Camera Head Sensor Size | 1/4 inch |
| Camera Head View Angle | 90° |
| Camera Head Work Current/Power | DC12V |

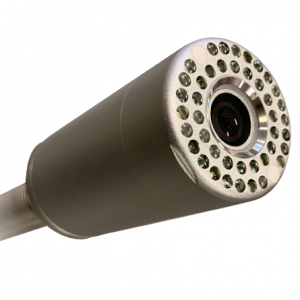

| Camera Head Camera Light | 12 PCS white LEDS |
| Camera Head Resolution | PAL: 720 X 576 |
| Camera Head Glass Material | Sapphire glass |
| Camera Head Shell Material | Stainless steel |
| Cable Wheel Cable Size | 520L x 320W x 710H |
| Cable Wheel Wire Material | Fiberglass rod |
| Cable Wheel Wire Length Options | 60 meters |
| Cable Wheel Wire Diameter | Ø9.0mm |
| Monitor Size | 9 inch digital color |
| Monitor Total Pixels | 1440 X 234 |
| Monitor Work Current/Supply | DC12V |
| Monitor OSD Language | English |
| Monitor Ratio | 16:9 and 4:3 |
| Lithium-Ion Battery Total Power | 14W |
| Lithium-Ion Battery Charge Time | 5 hours |
| Lithium-Ion Battery Protective Voltage | 8.1V |
| Lithium-Ion Battery Work TIme | ≥ 260 minutes |
| Control Box Power Supply | 12V |
| Control Box Work Current | 200MA |
| Control Box Storage Medium | 8G SD card (max 32G) / SD card reader |
| Control Box DVR Total Pixels | 720 X 576 (D1) |
| Control Box Movie Format | AVI |
| Skid | Ø75mm, Ø100mm, Ø150mm, Ø220mm |
| Charger Input | AC100-240V – 50/60Hz |
| Charger Output | DC 12V/1000MA |
| Charger DC Plug Diameter | 2.1mm |
| Keyboard Size | 220(L) X 118(W) X 18(H)mm |
| Suitcase Size | 460(L) X 370(W) X 180(H)mm |
| Suitcase Material | Engineering plastics |
Key Features
- Easy and simple one-hand operation; built-in handle
- Easy to learn; 3 keypad switches: on/off and volume, sensitivity up and sensitivity down
- Volume built into the on/off key; just hold down the key while it cycles through the settings
- The electronic keypad “clicks” when a key is depressed. A “real” speaker is in the front panel, providing outstanding volume.
- Microprocessor remembers the volume and gain settings from the last time the unit was on Non-metered (ML-1) and metered (ML-1M) versions are designed to look, feel and operate the same
- Strong aluminum monotube construction from the tip through the end of the handle and ABS injection-molded electronics case (3 ¼” tapered to 2 ½”-wide X 4 ½” tapered to 2 ½”-deep) provide the best structural integrity in a hand-held locator.
- Lightweight; only about two pounds including batteries
- Uses 2 regular alkaline 9-volt batteries, parallel; the unit is shipped with two spare batteries
- Soft pack carrying case included (optional hard case available) Battery compartment separated from electronic components and the circuit board. No exposing electronics to replace the batteries.
